Description

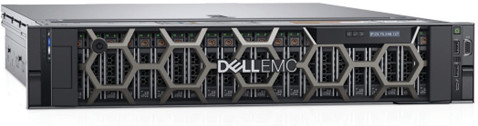

| PowerEdge R740 | ||
| Features | Technical Specification | |
| Processor | Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor | |
| Memory | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max
Up to 12 Intel® Optane™ DC persistent memory PMem, 6.14TB max (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only |
|
| Storage controllers
Internal Boot |
Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA
Software RAID:S140 Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module1 |
|
| Storage | Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 122.88TB or up to 8 x 3.5” SAS/SATA HDD max 128TB Optional DVD-ROM, DVD+RW | |
| Power supplies | Titanium 750W, Platinum 495W, 750W, 750W 240VDC,2 1100W,
1100W 380VDC2 1600W, 2000W and 2400W, Gold 1100W -48VDC |
Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy |
| Dimensions | Form factor: Rack (2U) | Height: 86.8mm (3.4”)
Width3: 434.0mm (17.08”) Depth3: 737.5mm (29.03”) Weight: 28.6kg (63lbs.) |
| Embedded management | iDRAC9, iDRAC Direct, iDRAC RESTful with Redfish, Quick Sync 2 wireless module (optional) | |
| Bezel | Optional LCD Bezel or Security bezel | |
| OpenManage™ Software | OpenManage Enterprise | OpenManage Mobile OpenManage Power Manager |
| Integrations and connections | Integrations:
Microsoft® System Center VMware® vCenter™ BMC Truesight Red Hat® Ansible® Modules |
Connections:
Nagios® Core & Nagios® XI Micro Focus Operations Manager I IBM Tivoli Netcool/OMNIbus |
| Security | TPM 1.2/2.0, TCM 2.0 optional Cryptographically signed firmware Secure Boot | System Lockdown (requires iDRAC Enterprise or Datacenter) Secure erase
Silicon Root of Trust |
| I/O & Ports | Network daughter card options
4 x 1GbE or 2 x 10GbE + 2 x 1GbE or 4 x 10GbE or 2 x 25GbE Front ports: 1 x Dedicated iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x USB 3.0 (optional), 1 x VGA Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x VGA Video card: 2 x VGA Riser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots |
|
| Accelerator options | Up to three 300W or six 150W GPUs,
or up to three double-width or four single-width FPGAs. |
See Dell.com/GPU for latest information. |
| Supported operating systems | Canonical® Ubuntu® Server LTS Citrix® Hypervisor
Microsoft Windows Server® LTSC with Hyper-V Oracle® Linux |
Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi
For specifications and interoperability details, see Dell.com/OSsupport. |
| OEM-ready version available | From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com/OEM. | |
| Recommended support | Dell EMC ProSupport Plus for critical systems or Dell EMC ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell EMC representative today for more
information. Availability and terms of Dell EMC Services vary by region. For more information, visit Dell.com/ServiceDescriptions. |
|
