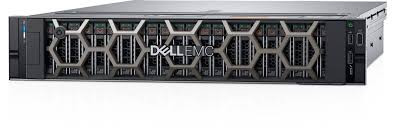

R740xd product specifications
| Features | Technical Specifications |
| Processor | ● Up to two 2nd Generation Intel® Xeon® Scalable processors
● Up to 28 cores per processor |
| Memory | ● 24 DDR4 DIMM slots
● Supports RDIMM /LRDIMM, up to 3TB ● Speeds up to 2933 MT/s ● Up to 12 NVDIMM, 192 GB Max ● Up to 12 Intel® Optane™ DC persistent memory DCPMM, 6.14TB max, (7.68TB max with DPCMM + LRDIMM) |
| Storage controllers | Internal controllers:
● PERC H730P ● H750 ● HBA350i ● PERC H740P ● Software RAID (SWRAID) S140 Boot Optimized Boot Optimized Storage Subsystem: ● HW RAID 2 x M.2 SSDs 240 GB or 480 GB External PERC (RAID): ● PERC H840 ● HBA355e |
| Features | Technical Specifications |
| 12Gbps SAS HBAs (non-RAID):
● External – 12Gbps SAS HBA (non-RAID) ● Internal – HBA330 (non-RAID) |
|
| Drive bays | Front bays:
● Up to 24 x 2.5” SAS/SSD/NVMe, max 184TB ● Up to 12 x 3.5″ SAS/SATA HDD max 192TB Mid bay: ● up to 4 x 2.5” SAS/SSD, max 30.72TB ● Up to 4 x 3.5″ max 64TB Rear bays: ● Up to 4 x 2.5” SAS/SSD/, max 30.72TB ● Up to 2 x 3.5″ max 32TB SAS/SATA HDD |
| Power supplies | ● Titanium 750W
● Platinum 495W, 750W, 750W Mixed Mode HVDC (for China only), 750W Mixed Mode 240 V DC (For China only),1100W, 1600W, 2000W, and 2400W ● 1100W 380VDC (China and Japan only) ● Gold 1100W -48VDC ● Hot plug power supplies with full redundancy ● Up to 6 hot plugs fans with full redundancy |
| Dimensions | ● Form factor: Rack (2U)
● Height: 86.8m (3.4”) ● Width*: 434mm (17.1″) ● Depth*: 737.5mm (29.0″) ● Weight: 33.1kg (73.0lbs.) NOTE: * Dimensions do not include bezel. |
| Embedded management | ● iDRAC9
● Quick Sync 2 wireless module optional ● iDRAC RESTful with Redfish ● iDRAC Direct |
| Bezel | Optional LCD Bezel or Security bezel |
| OpenManage™ Software | ● OpenManage Enterprise
● OpenManage Mobile ● OpenManage Power Center |
| Integrations and connections | Integrations:
● Microsoft® System Center ● VMware® vCenter™ ● BMC Truesight ● Red Hat Ansible Connections: ● Nagios Core & Nagios XI ● Micro Focus Operations Manager i (OMi) ● IBM Tivoli Netcool/OMNIbus ● IBM Tivoli® Network Manager IP Edition |
| Security | ● TPM 1.2/2.0, TCM 2.0 optional
● Cryptographically signed firmware ● Secure Boot |
| Features | Technical Specifications |
| ● System Lockdown (requires OpenManage Enterprise)
● Secure erase |
|
| I/O & Ports | Network daughter card options:
● 4 x 1GbE or ● 2 x 10GbE + 2 x 1GbE or ● 4 x 10GbE or ● 2 x 25GbE Front ports: ● VGA ● 2 x USB 2.0 ● 1 x USB 3.0 (optional) ● 1 x Dedicated iDRAC direct USB Rear ports: ● VGA ● Serial ● 2 x USB 3.0 ● 1 x Dedicated iDRAC network port Video card: ● VGA Riser options with p to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots |
| Accelerator options | ● Up to three 300W or six 150W GPUs or
● Up to three double-width or four single-width FPGAs. ● GPU and FPGA options are available only on 24 x 2.5 -inch drive chassis. Up to two GPUs are supported on NVMe configurations. |
| Supported operating systems | ● Canonical® Ubuntu® LTS
● Citrix® Hypervisor ● Microsoft® Windows Server® LTSC with Hyper-V ● Oracle® Linux ● Red Hat® Enterprise Linux ● SUSE® Linux Enterprise Server ● VMware® ESXi® |
| Recommended support | Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. |
